4 Stations Automatic Stator Winding Machine for Washing Machine Motor Manufacturing

4 Stations Automatic Motor Stator Winding Machine

This stator winding machine is suitable for air conditioner motor, compressor motor, fan motor, washing machine motor, pump motor etc.

NIDE can supply Stator Winding Machine, Automatic Stator Winding Machine. The stator Coil Processing Equipment is motorized and programmable and managed in direct drive mode.We can help you become more efficient, improve product quality, and increase productivity. We do more than just manufacture equipment. We are problem solvers and provide professional motor manufacturing solutions.

(1)Stator Winding Machine Details

The stator winding machine is suitable for air conditioner motor, compressor motor, fan motor, washing machine motor, pump motor etc.

Continuous/discontinuous coil winding method.

Mature and advanced technology, reliable quality, easy operation and maintenance.

4 stator winding working stations.

Meet the 2poles,4poles,6poles coil winding.

Main phase and auxiliary phase can be wound simultaneously.

Suitable for high production capacity stator coil winding

Auto skip, auto cutting, auto indexing could be completed at one time,

Parameter can be set in HMI, winding tension is adjustable,

(2)Technical parameter

Product name: Motor stator winding machine
Wire diameter: 0.18~1.2mm
Max stator OD:200mm
Max stack height: 160mm
Flyer diameter: 400mm
Max RPM: 1800RPM
Air source: 0.6-0.8MPa
Winding station: 4
Winding head: 2
Power supply: 380V 50/60HZ 7.5KW
Weight: about 2000KG

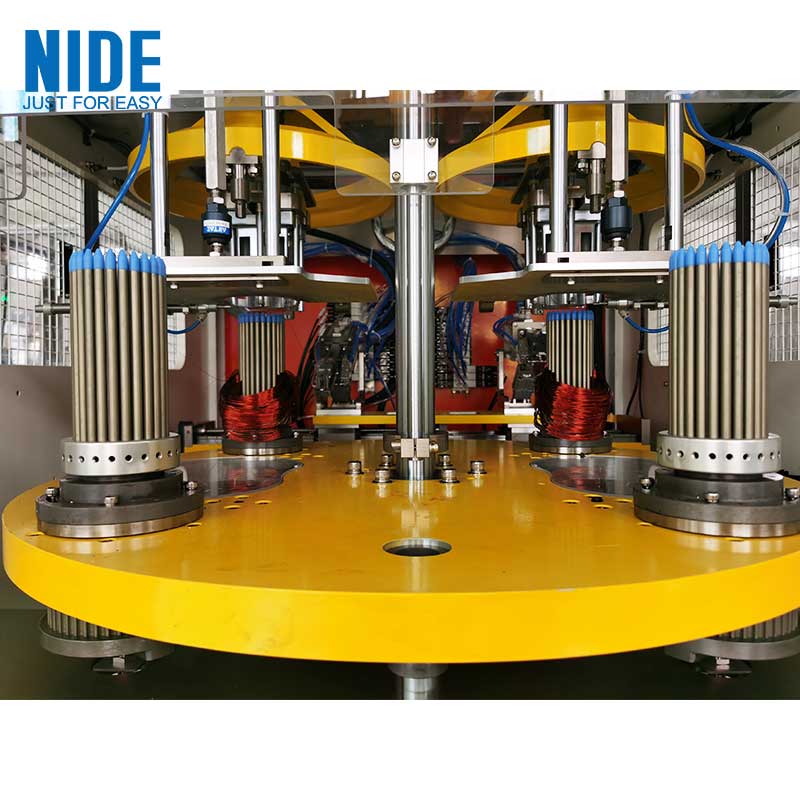

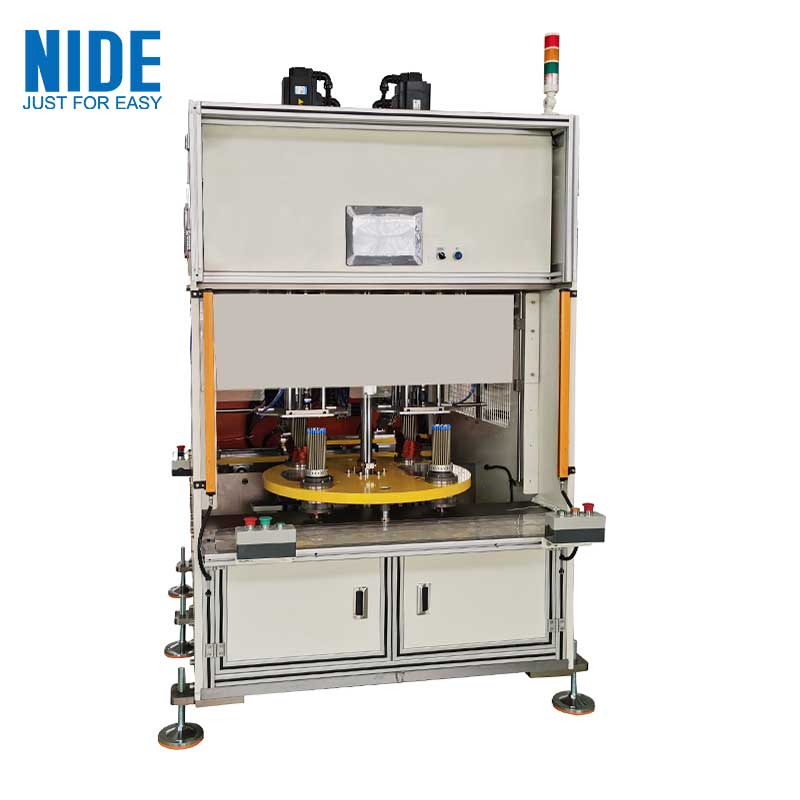

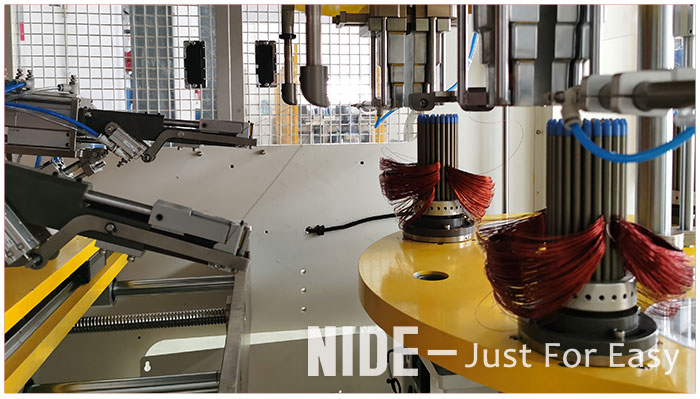

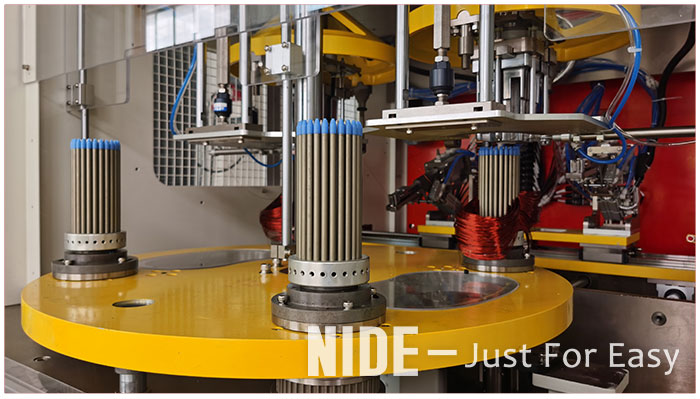

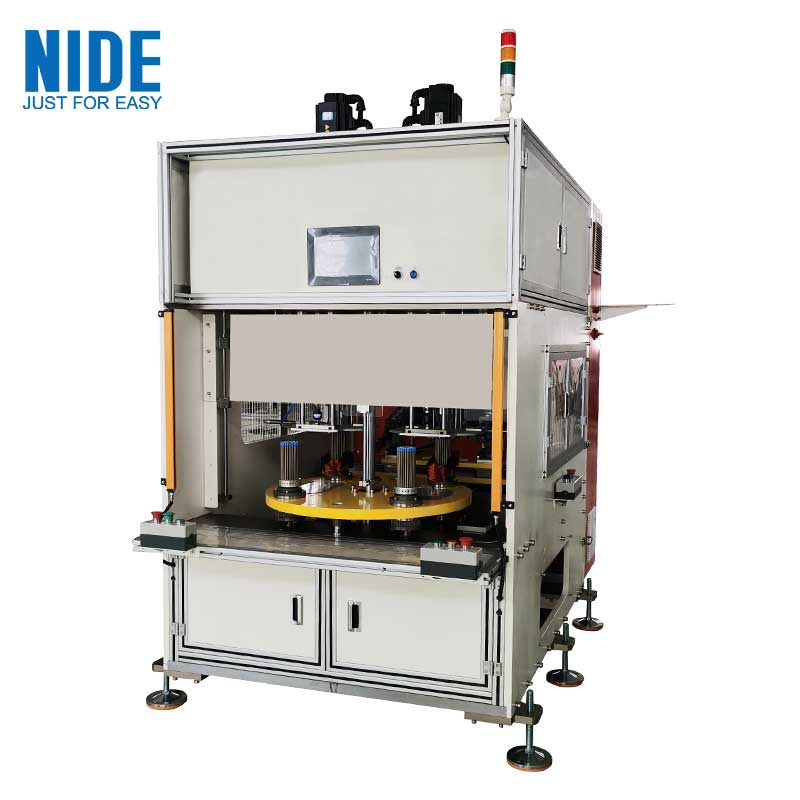

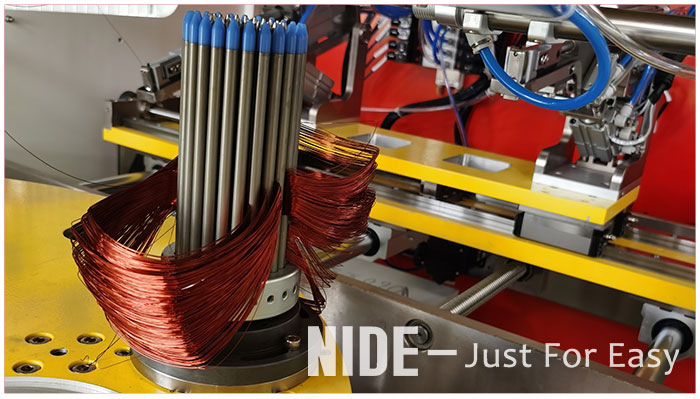

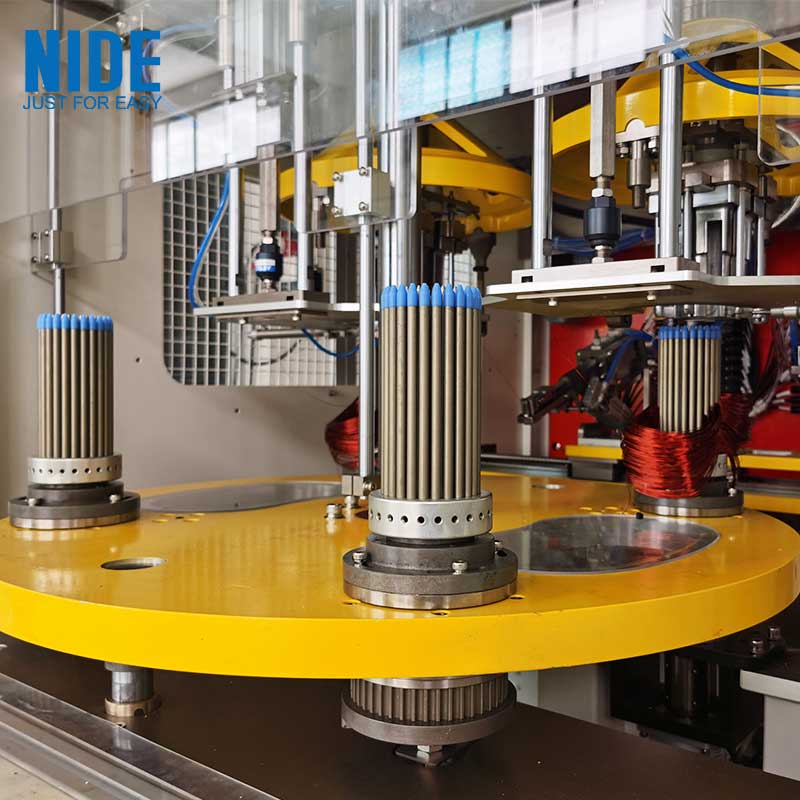

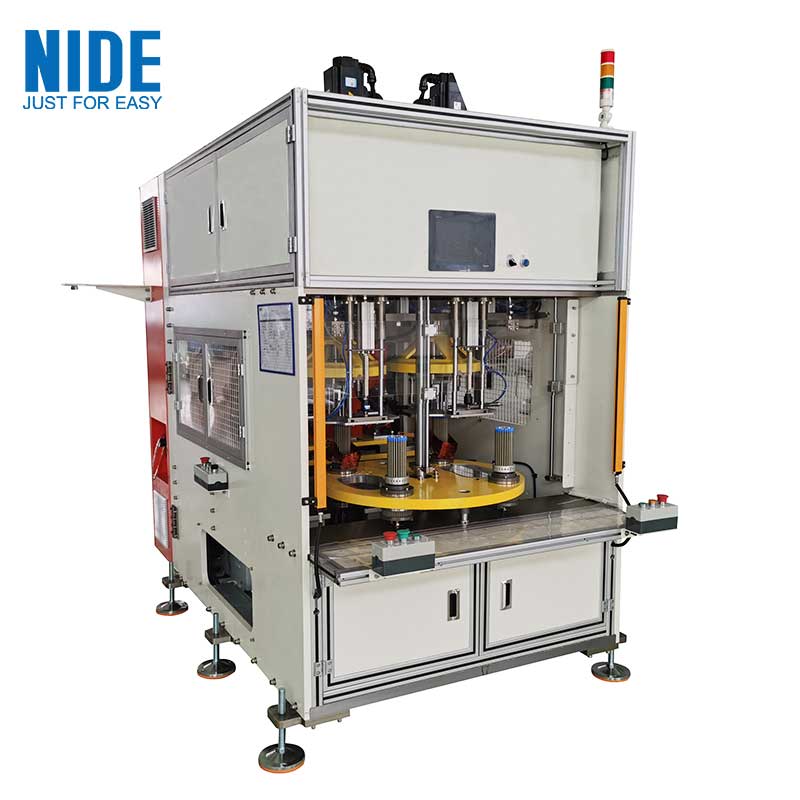

(3)Stator Winding Machine Picture show
