Automatic wheel hub motor stator flyer winding machine

Automatic wheel hub motor winding machine

This wheel motor stator winding machine is suitable for electric vehicles, electric bicycles, electric motorcycles, electric balance vehicles, electric scooter, new energy vehicles, etc.

Automatic wheel hub motor stator flyer winding machine for new energy vehicles motor manufacturing


The wheel motor stator winding machine adopts flyer coil winding technology, is used for electric vehicles wheel hub motor manufacturing.



(1). Main function:

The wheel motor stator winding machine adopts air cylinder, PLC and touch screen control to realize the main functions of positioning, indexing, flying fork winding, motor cable winding, automatic front thread trimming and other functions. It can store hundreds of parameters and switch arbitrarily.



(2). Technical Parameters

Product name:Automatic wheel hub motor stator winding machine
Dimension 900X2100X1700 mm
Weight:500Kg
Air pressure: 0.4-07Mpa
Input voltage: 220V
Input power: 5KW
Winding method: flyer coil winding
Winding station: 1
Color: white
Processing range:Stator OD D200-D300mm(different OD needs to change different tooling)
Stator stack:  30-85mm (The tooling can be used for stacked stators within 5mm. If the random mold is designed for 30mm, it can be used to 35mm stators, If you make a stator of more than 35mm, you need to redo 2 pieces of guard plates, 2 sets of I-shaped blocks, spare parts)
Wire dia:0.5-1.0mm
Cycle time:winding 0.9X40 turns 54 slots 15 mins.
Primary qualification rate≥98%(Stator stack thickness error is less than 0.2mm)


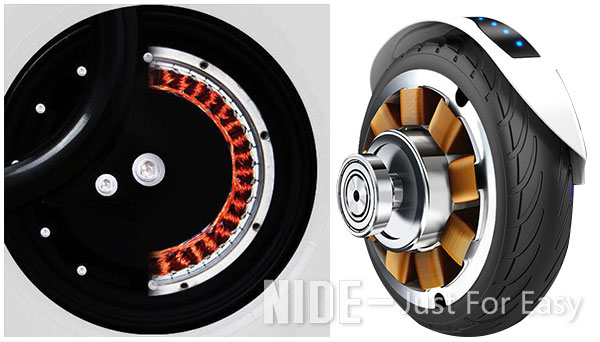

(3). Application

This wheel motor winding machine is suitable for electric vehicles, electric bicycles, electric motorcycles, electric balance vehicles, electric scooter, new energy vehicles, etc.

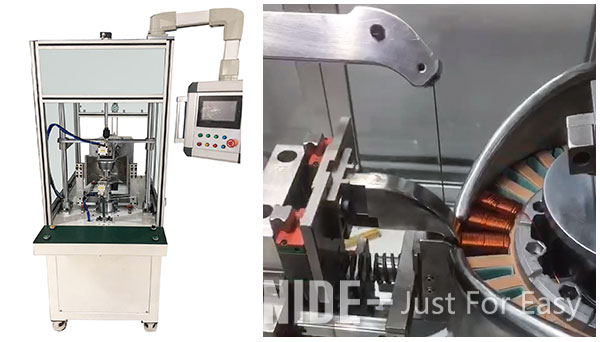

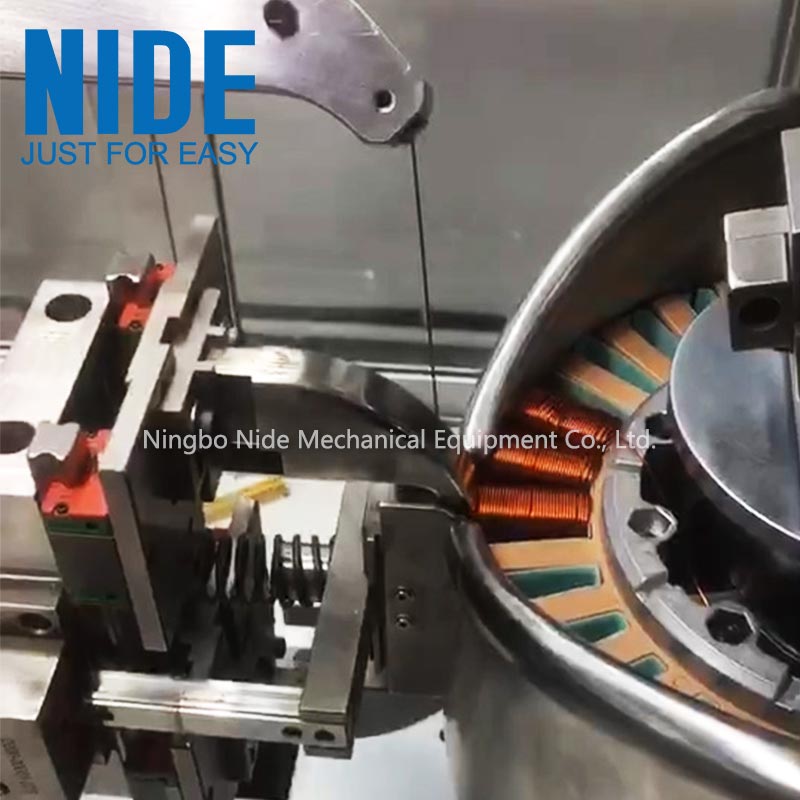

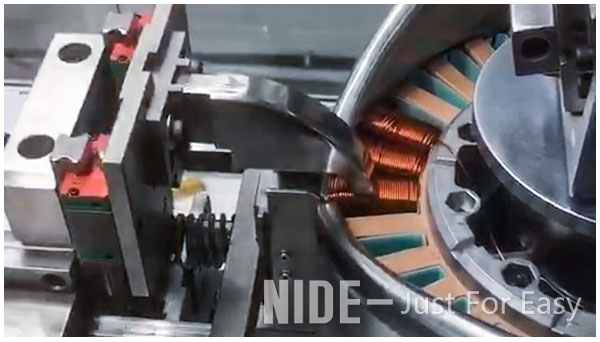

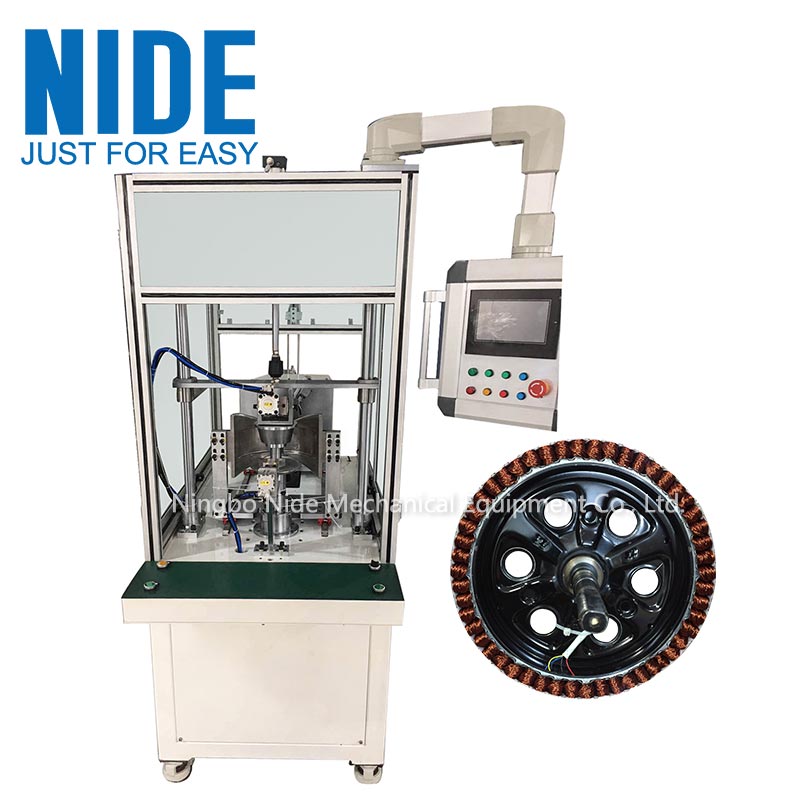

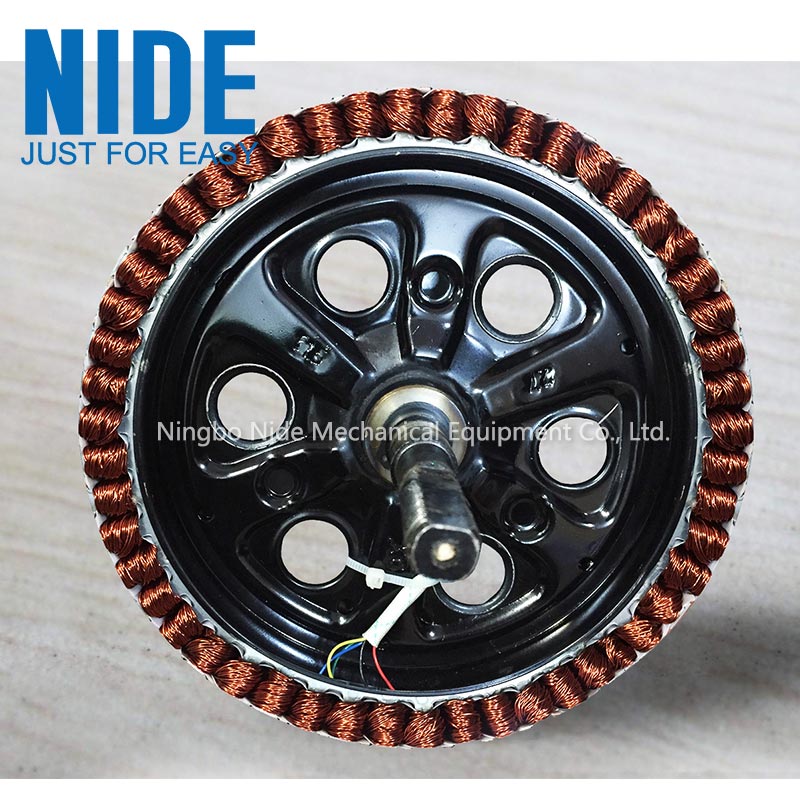

(4). Picture show
