(1) Application
This wheel motor winding machine is used for the wheel hub motor stator coil winding ,and the brushless stator and the outer rotor coil winding. The stator winding machine is suitable for electric vehicles, battery cars, electric motorcycles, twisting cars, balance cars, new energy vehicles, etc.
(2) Features and features
The automatic stator winding machine is designed for the wheel motor coil winding. It equips with the servo control system.
It could diagnose the fault, count the output, etc.
The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed.
The machine adopts double stations winding design.
It is easy to operate and maintain .
It has high production efficiency and reduced labor costs.
The stator winding machine has remote diagnostics function.
(3) Technical parameter:
| Product name: | Automatic wheel motor stator winding machine |
| Wire dia : | 0.2~1.3mm |
| Stator ID : | 10~100mm |
| Stator O.D : | 80-310mm |
| Stator stack lenght : | 10-50mm |
| Max. winding speed : | 500RPM |
| Winding station: | 2 |
| Parallel winding wire number : | 1~8 |
| Voltage : | three pahse 380V 50HZ , single pahse 220V 50HZ |
| Air pressure : | 0.4-0.7 MPA |
| Total power : | ＜7KW |
| Weight : | about 750KG |
| Dimension : | 1100x1000x1700mm |
(4) Picture show:

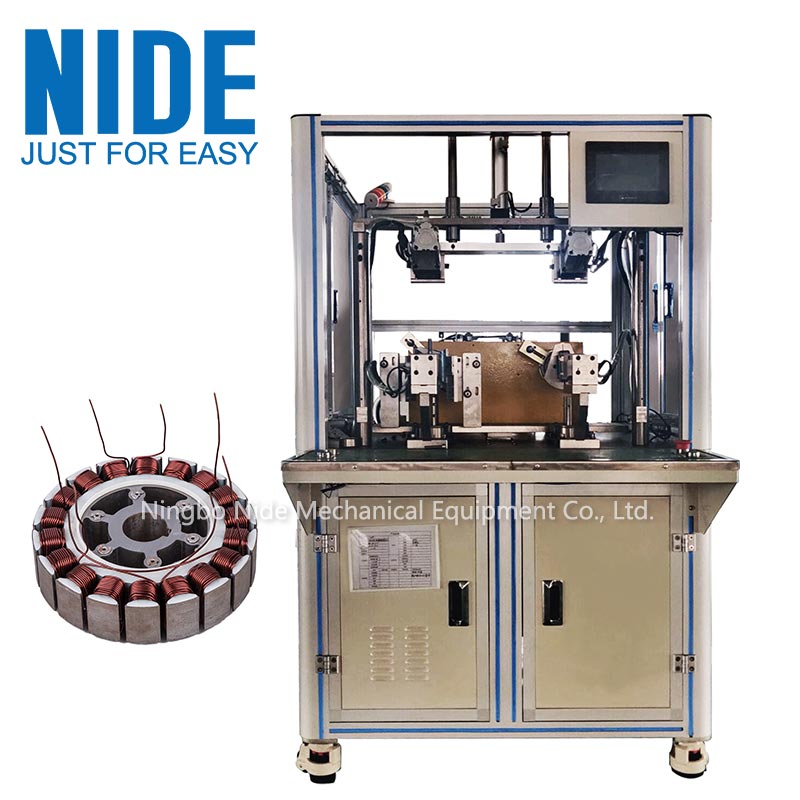

The wheel motor stator winding machine with double winding stations
The wheel motor stator winding station and stator after coil winding
The wheel motor stator winding machine video https://youtu.be/lyO92w45O4w
