Automatic BLDC motor stator paper insertion machine- servo motor slot paper cutting and forming equipment
(1). Introduction and features
The paper insertion machine is suitable for BLDC / brushless motor stator, servo motor and stepping motor stator insulation paper inserting. It automatically complete paper cutting, folding and inserting. The parameter can be set on HMI, low noise, high speed and high automation and easy operation. It has remote diagnosis function.
(2). Specification
| Product name: | Automatic Stator slot paper inserting and forming machine |
| Stack height: | 20mm ~ 60mm |
| Stator I.D: | 50~ 150mm(can be customized if special) |
| Insulation paper width: | 10mm ~ 55mm(can becustomized if special) |
| Insulation paper thickness: | 0.188mm ~ 0.3mm |
| Slot No.: | Even(more than 8 slots) |
| Cycle time: | 11sec/pc |
| Notching dimension: | 0-3x45 |
| Air pressure: | 0.4~0.8MPa |
| Power supply: | 220V AC 50/60Hz |
| Power: | 7KW |
| Weight: | 600Kg |
| Dimension: | 1600mm X 700mmX 1780mm |

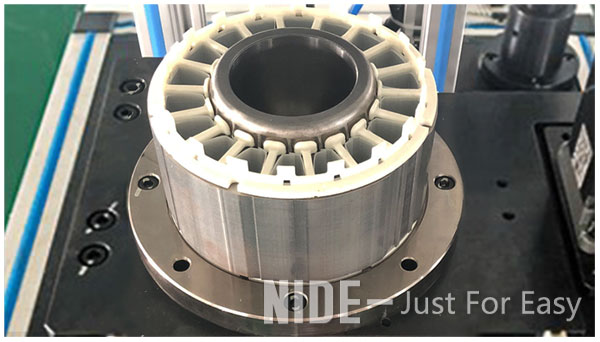

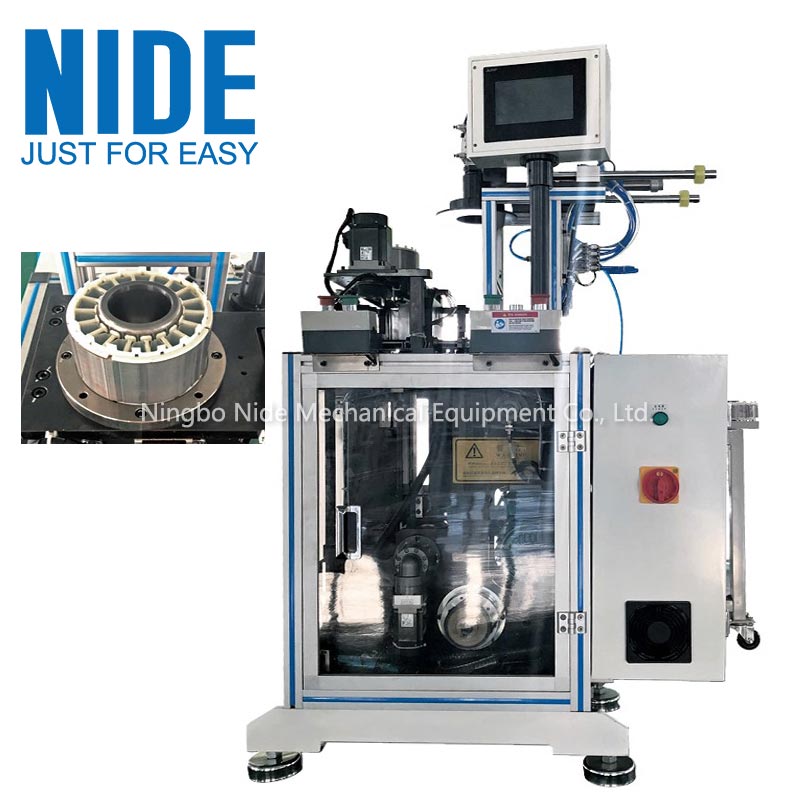

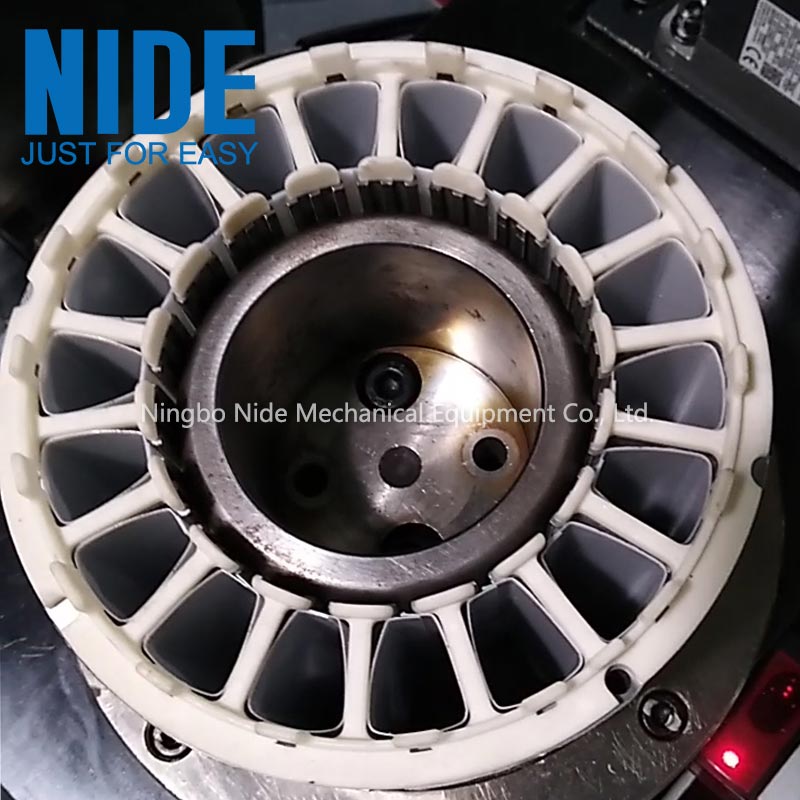

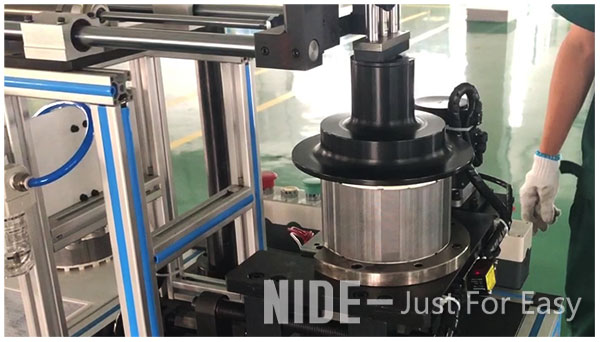

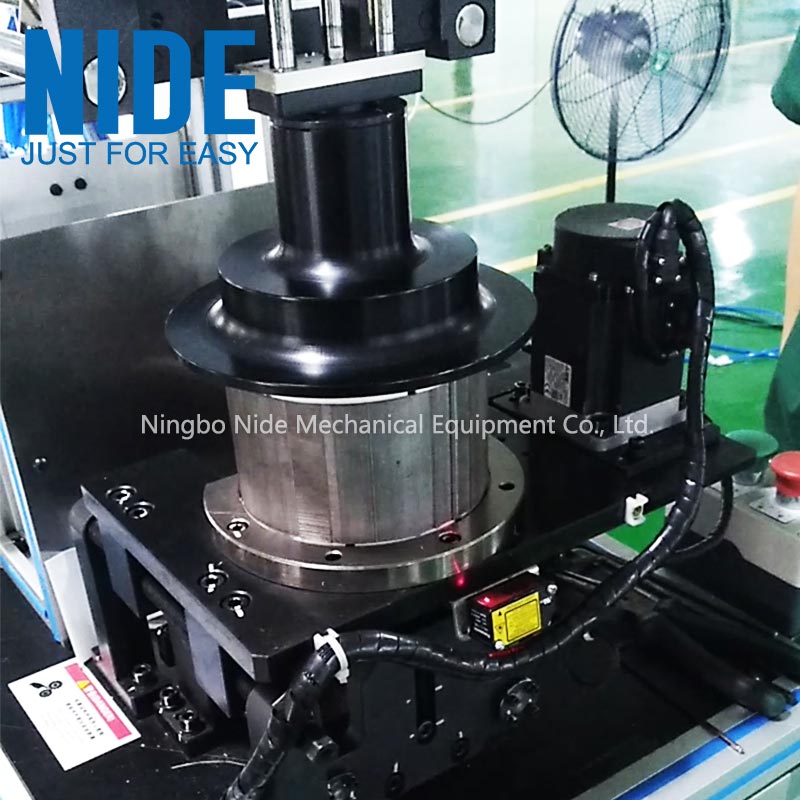

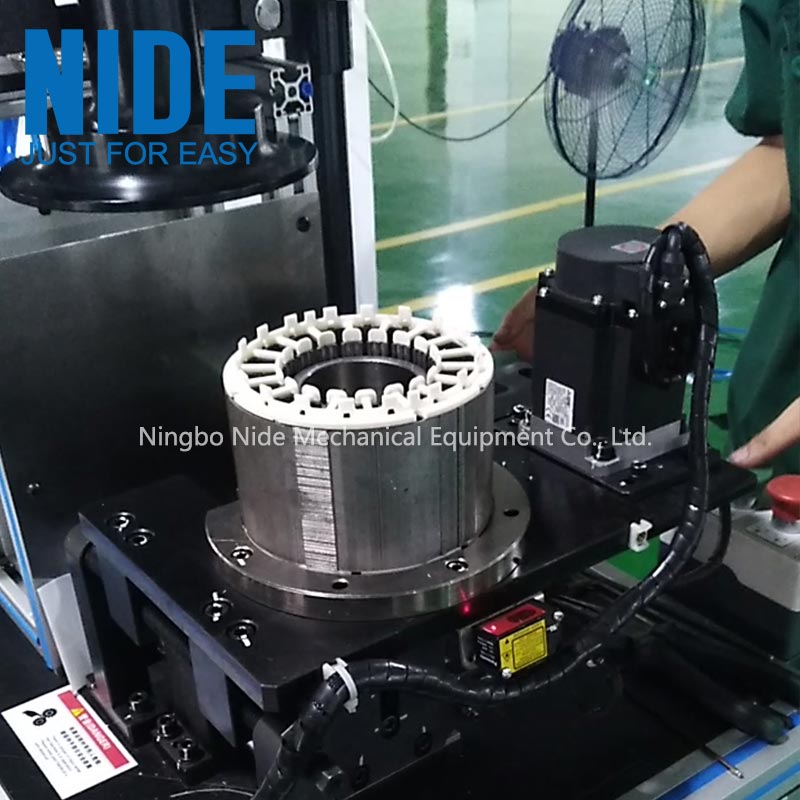

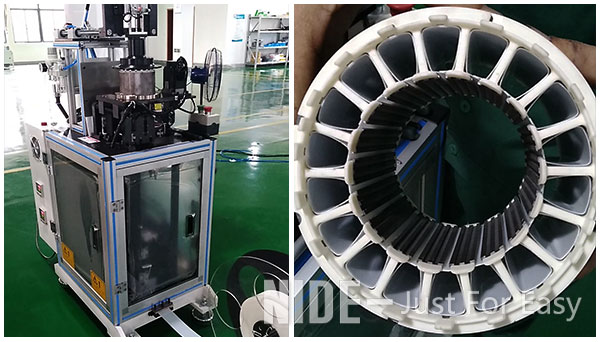

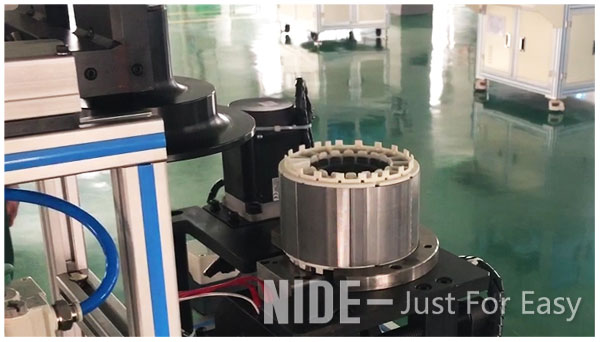

(3).Picture show
(4). The motor stator inner slot insulation paper insertion machine video
