Wheel Hub Motor Stator Slot Paper insertion Machine

Automobile Motor Stator Slot Paper insertion Machine

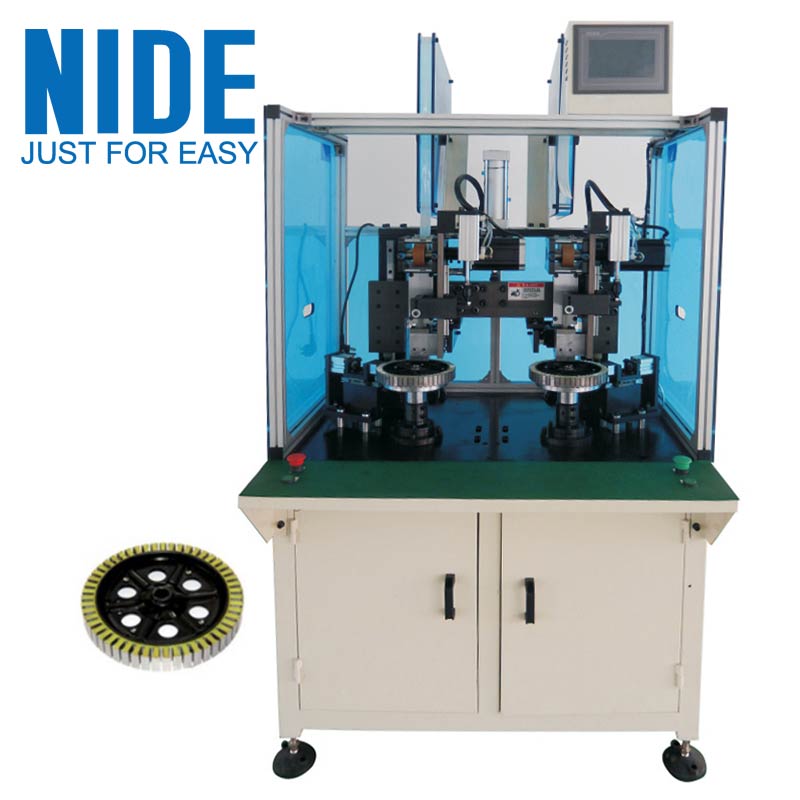

This Electric Bike Wheel Motor Stator Slot Paper insertion Machine is desiged for wheel motor or electric bike motor stator to do slot paper insertion.

This Electric Bike Wheel Motor Stator Slot Paper insertion Machine is desiged for wheel motor or electric bike motor stator to do slot paper insertion.


(1) Machine function and characteristic:

This machine is designed for wheel stator slot paper insertion. Double servo working system is adopted to improve the paper insertion efficiency dramatically. Parameter of stator slot number. feeding speed, indexing speed and indexing direction can be set in the HMI.Infinitely variable speeds are applicated to working frequency.During running, machine has no obvious vibration or noise. After paper inserting, there should be no warp or deformation of stator lamination.


(2) Technical parameter:

  • Stator diameter: 150~200mm

  • Stator height: 18~35mm

  • Paper thickness: 0.188~0.25mm

  • Power supply: 220V/ 50/60Hz 1.0Kw

  • Weight: 550Kg

  • Dimension: 1550*550*1500mm



(3) Application:

It is suitable for wheel  motor stator.



Working station


The Wheel Motor Stator Slot Paper insertion Machine youtube video
