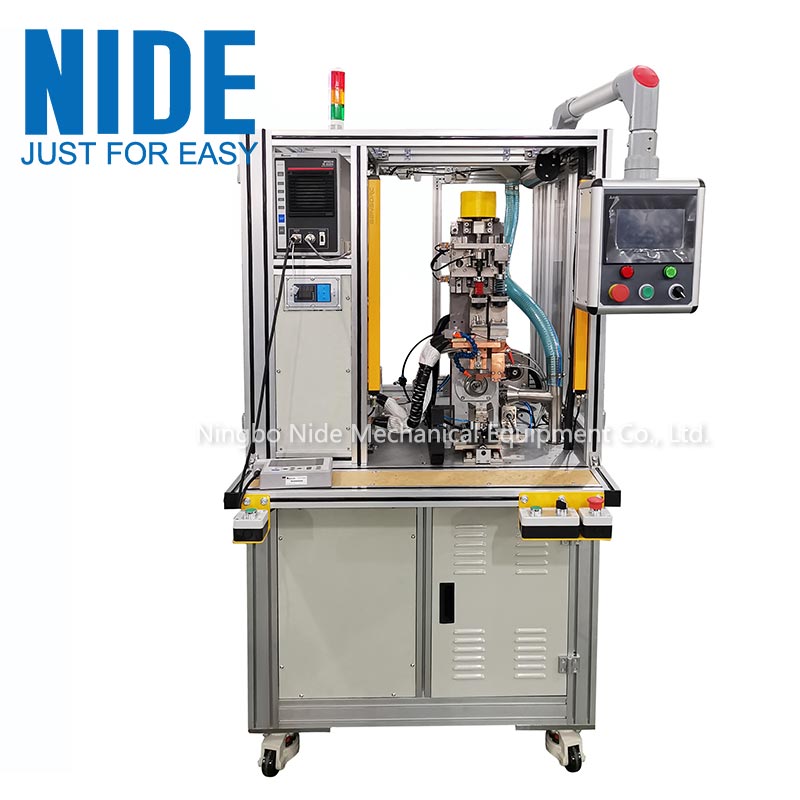

Automatic Armature Spot Welder Commutator Hot Staking Machine

Electric Motor Commutator Spot Welder

The commutator spot welding machine is used for motor armature rotor commutator hot staking and the spot welding machine is suitable for three shifts continuous production,greatly improve production efficiency.

Automatic Armature Spot Welder Commutator Hot Staking Machine

Hotstaking Machine Features

1. The commutator spot welding machine is used for motor armature rotor commutator hot stacking

2. The commutator hot staking machine is suitable for three shifts continuous production

3. Production efficiencyshift output is about 1500

4. Spot welding machine Loading method: manually loading/unloading

5. Dynamic display the parameter, including the shift output, accumulate output, cycle time,etc., if there is abnormal during production, the HMI will alarm

6. It has production(jog and auto) and commissioning mode

7. The parameter can be saved as per the armature model No., call-out the welding parameter through the Miyachi power source

8. It has welding limit function to remind operator to change the tungsten rod in time


Commutator hotstaking Process

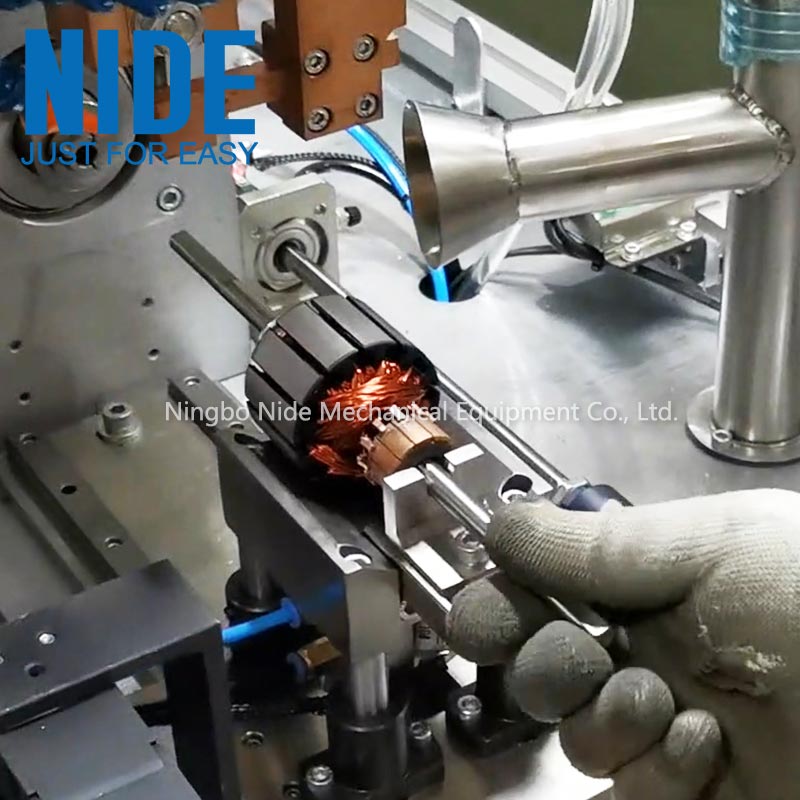

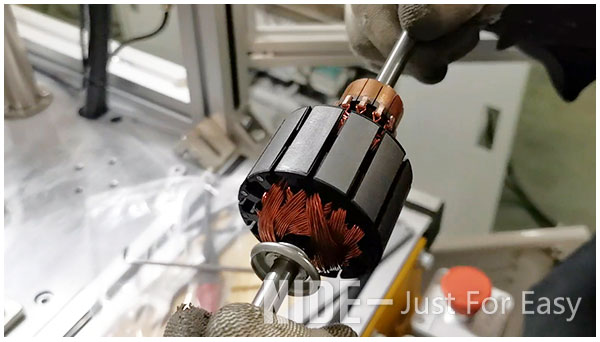

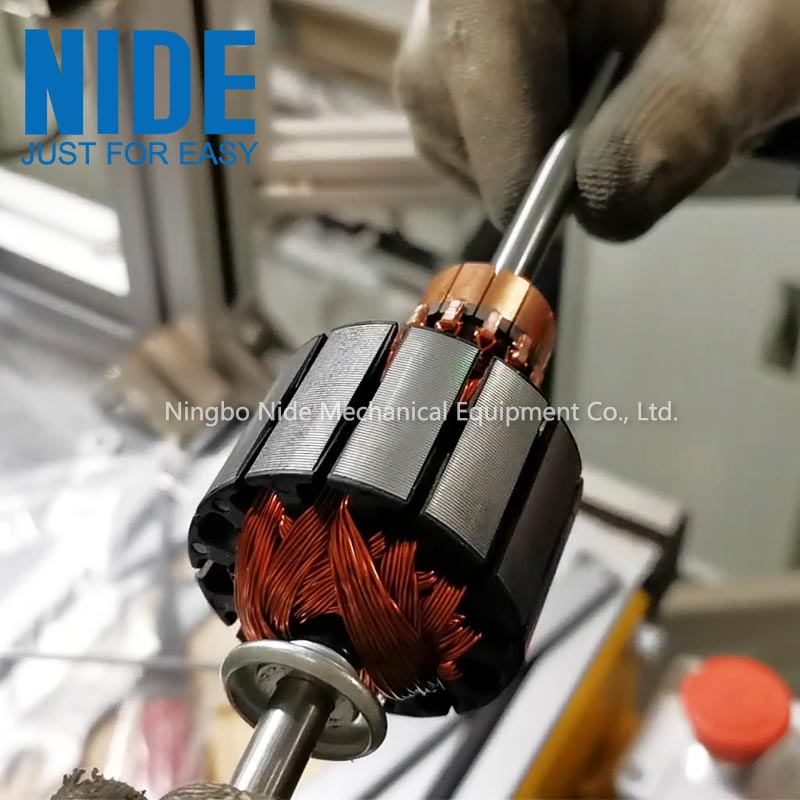

1. Manually place the armature on the V block, positioning,

2. start the machine,

3. machine clamp the armature,

4. positioning cylinder withdraw,

5. servo motor executes indexing compensation angle,

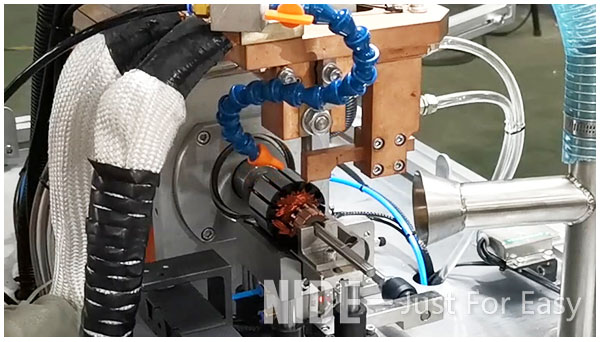

6. automatically indexing, automatically welding, automatically detecting the welding pressure and do the related treatment,

7. manually take the welded armature away from the V block


Main introduction and parameters

Product name

Armture commutator hotstaking machine

Loading method: (choose any one from the   following three methods)

1.Manually loading/unloading

2.Manually push guide rail to load/unload

3.Cylinder loading/unloading

Indexing method

servo indexing

Commutator type:

hook or riser

Wire diameter


Armature diameter


Stack length


Shaft length


Commutator diameter


Shaft diameter


Commutator hook/riser number


Zero finding method

manually place armature, cylinder drive   one block for positioning

Pressure control method:

spring + cylinder + pressure detection

Welding head cooling method:

water cooling

Parameter setting

set on the touch screen and power source ,   Parameter also can be set

Power source control method:

close loop feedback, high accuracy , inversion

Compressed air pressure


Welding source power

three phase AC380V±10%  50HZ    40KW

Water cooler power:

three phase AC380V±10%  50HZ

Machine weight

800kgfor reference


785Lx 910Wx 2100Hmm 3 (for reference)

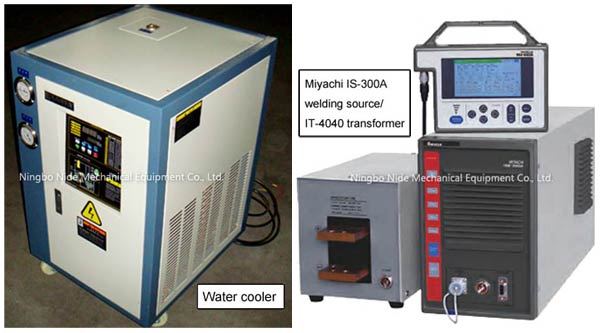

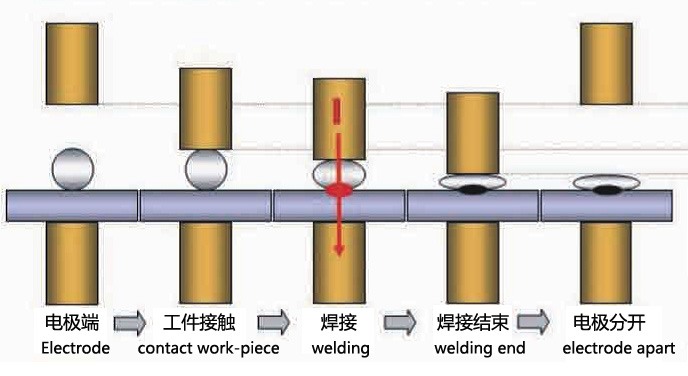

Inverter welding power supply operation process


Other requirement

Machine height: 2100mm height from the ground, the gap between machine bottom and ground is 150mm

The armature commutator hotstaking Machine is assembled with safety curtain, double-palm start

The spot welding machine can set safety password on the HMI to avoid wrong operation

Equip with transformer if necessary to control the voltage fluctuation

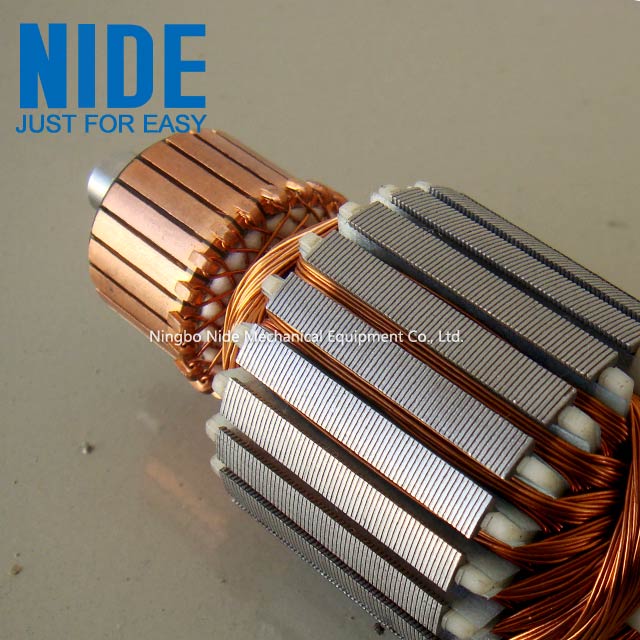

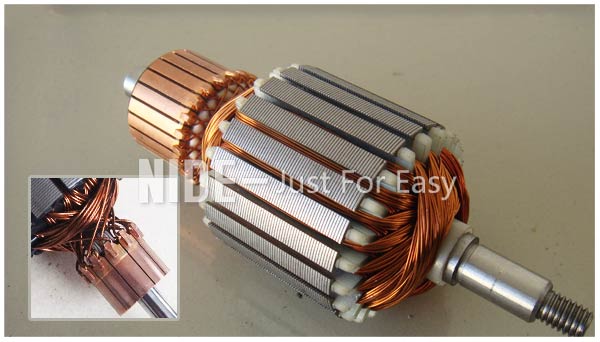

The armature after commutator hotstaking process

The armature commutator hotstaking machine Related Equipments display
