New energy vehicles motor stator slot paper insertion

New energy motor stator slot paper insertion machine

This motor stator slot insulation paper insertion machine is suitable for wheel hub motor stator insulation paper inserting,New energy motor slot paper insertion.

New energy vehicle wheel hub motor stator slot insulation paper inserting machine


This wheel hub motor stator slot paper inserting machine can be used for new energy automobile motor stator insulation paper inserting. The equipment is simple to operate and automatically runs. It only needs to manually take the hub stator. NIDE not only provides new energy electric automobile hub motor stator paper inserting machine, but also Series of hub motor manufacturing solutions, including hub motor stator winding machine, hub motor stator wedge inserting machine, hub motor stator spot welding machine, motor stator testing machine, etc.

The following is the introduction of the new energy electric vehicle hub motor stator slot insulation paper inserting machine


(1) Equipment functions and features

This stator paper insertion machine is specially designed for wheel hub motor stator insulating paper inserting.

It adopts servo working system which dramatically improve the paper inserting efficiency.

99% pass rate for one insertion of paper, 100% pass rate after repair

The number of stator slots, paper feeding speed, indexing speed, indexing direction and other functions can be set through the man-machine interface.

The working frequency can be continuously variable.

The stator has no phenomenon such as warping or deformation caused by paper insertion.

The whole machine has no obvious vibration and noise.


(2) Equipment parameters:

Product name: New energy vehicles motor stator paper insertion machine
Wheel hub Stator Outer Diameter: 80~200mm
Wheel hub Stator Stack thickness: 18~35mm
Number of stations:single station
Insulation paper thickness:0.188~0.35mm
Color: Customized
Power supply:220V 50/60HZ 1.0KW
Dimensions: 500x550x1500mm
Weight:350KG



(3) Application scope

This motor stator slot insulation paper insertion machine is suitable for wheel hub motor stator insulation paper inserting, such as electric bicycle motors, electric tricycle motors, electric motorcycles, electric scooter motors, electric balance bike motors, new energy vehicle motors, GO-Kart motor, Brushless DC hub motor, etc.

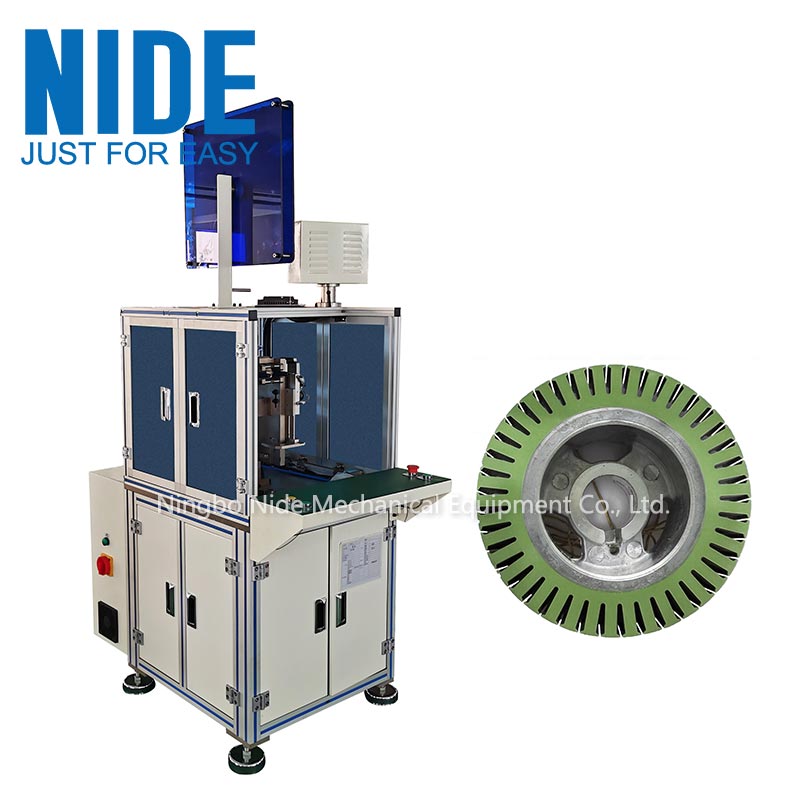

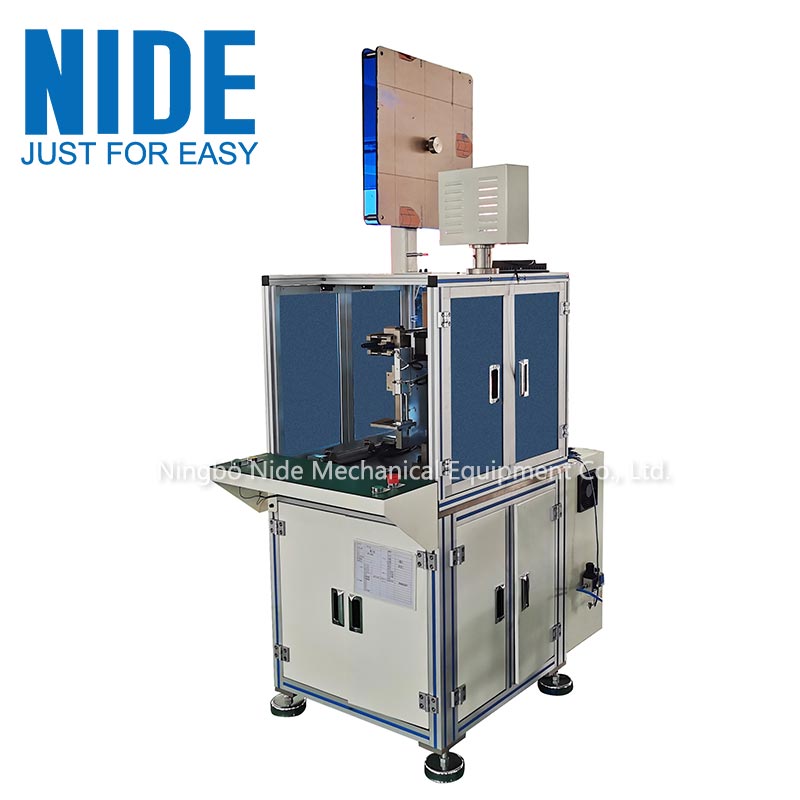

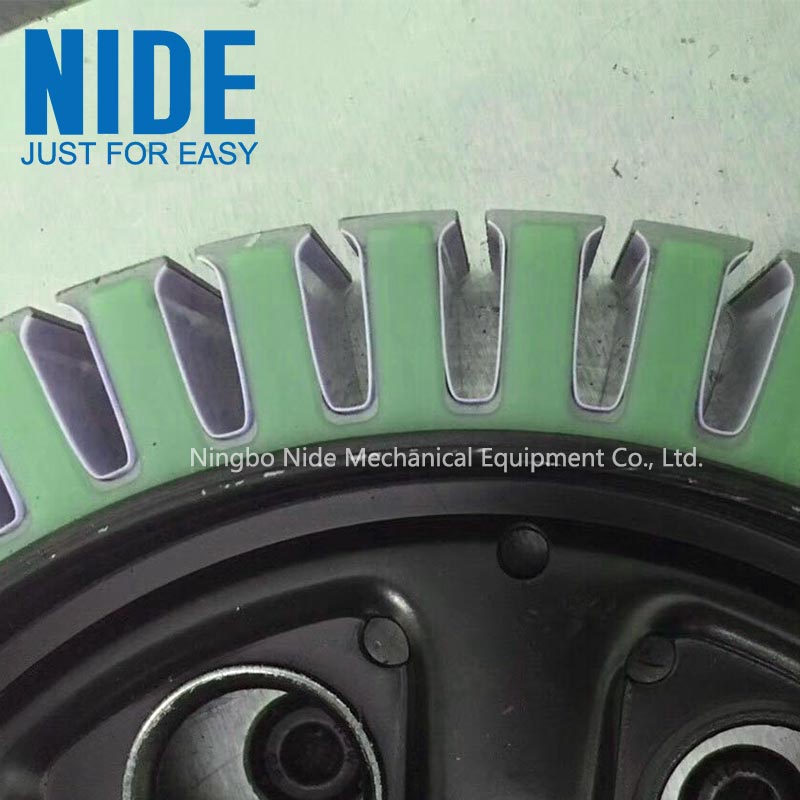

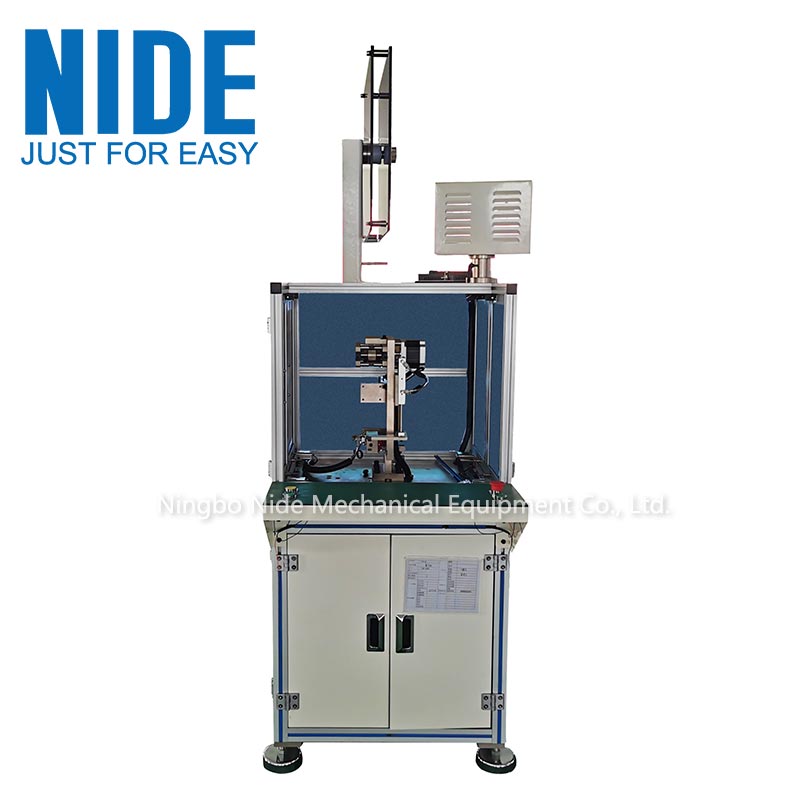

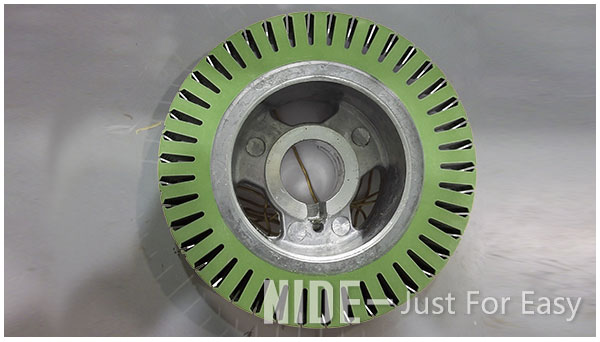

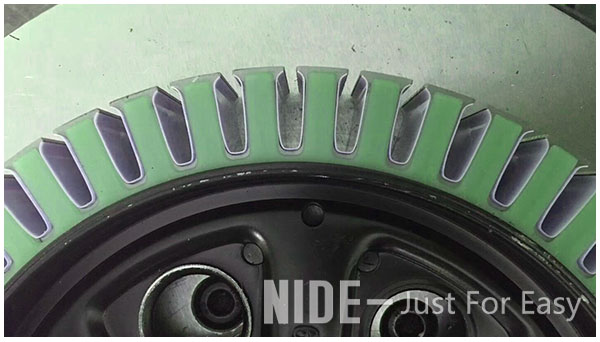

(4) Picture display


(4) The wheel hub motor stator paper insertion machine video https://youtu.be/pD9xofafa5k
