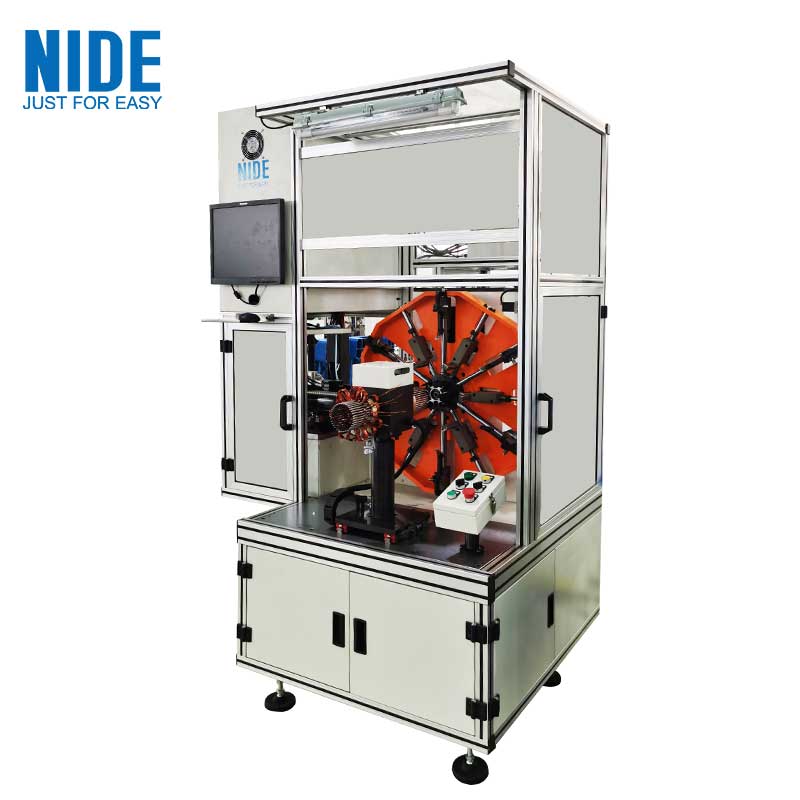

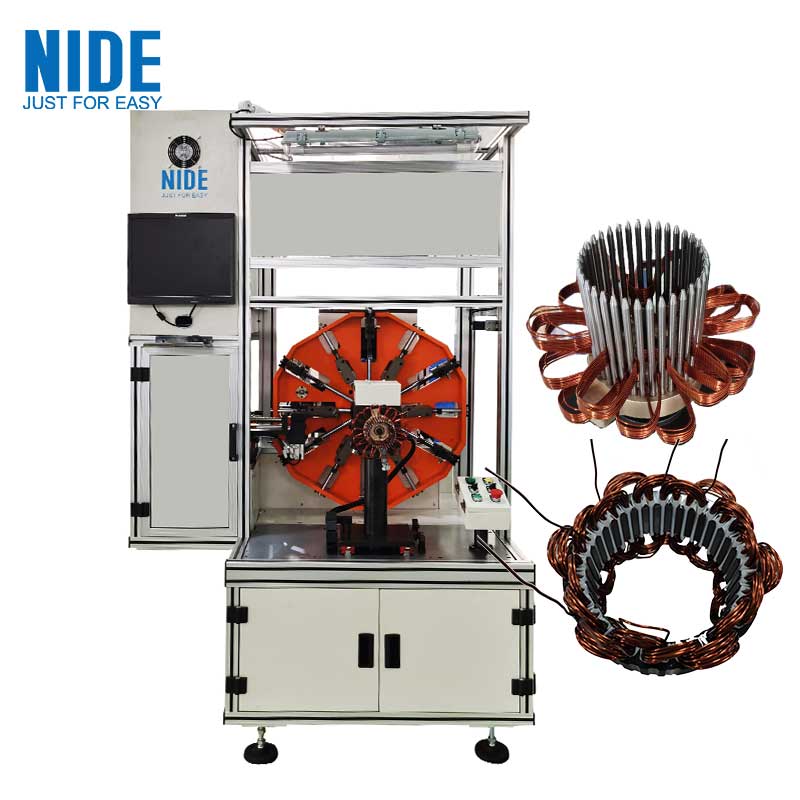

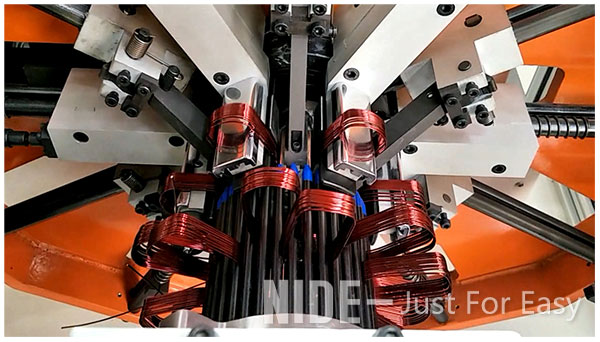

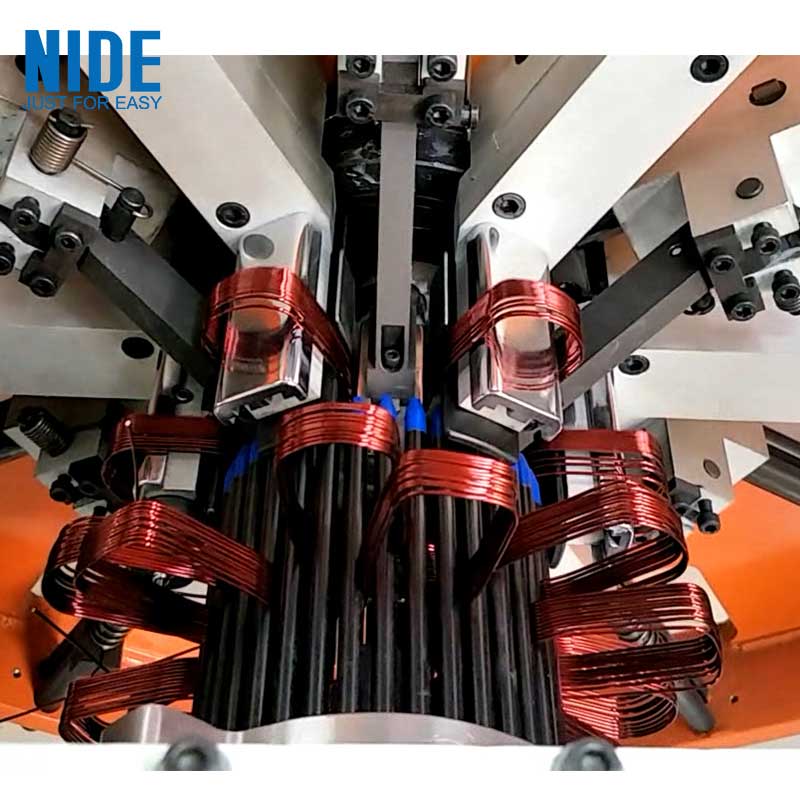

Automatic electric vehicle alternator stator wave winding machine
(1). The alternator stator waving winding machine application
This automatic alternator stator wave winding machine is suitable for electric vehicle motor winding, automobile alternator and generator stator coil winding.
(2). The electric vechicle alternator stator wave winding machine main feature:

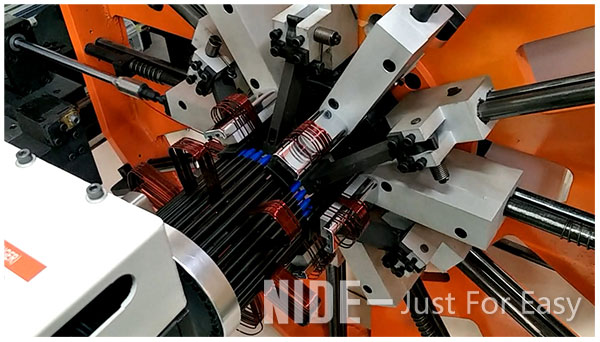

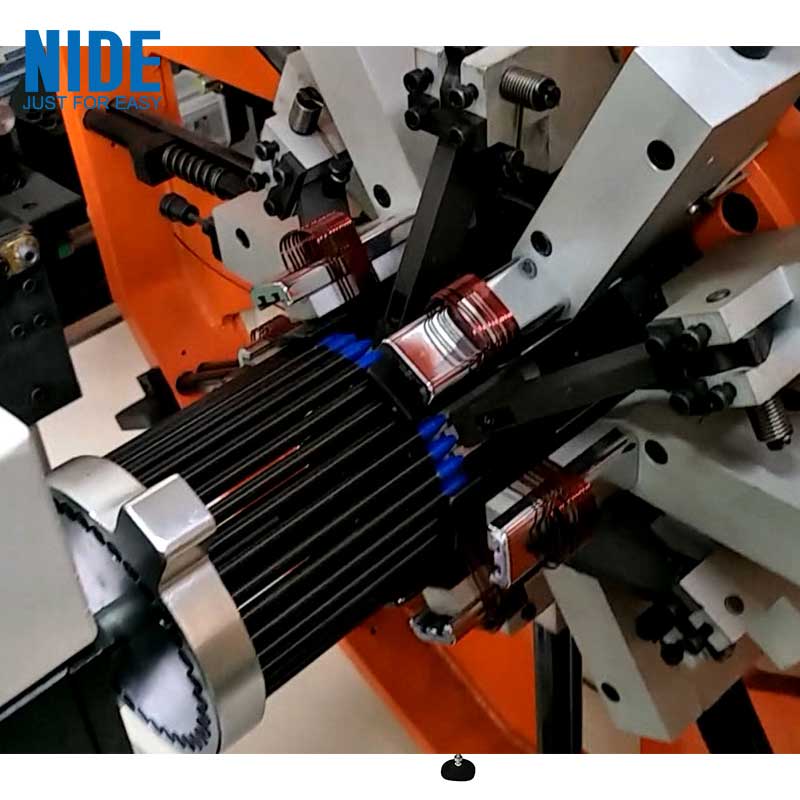

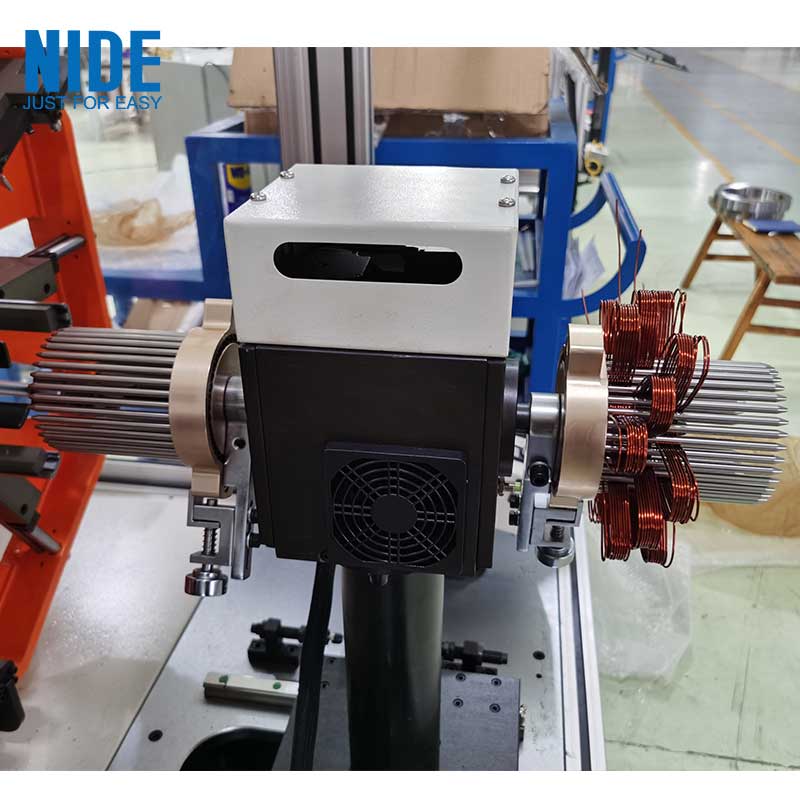

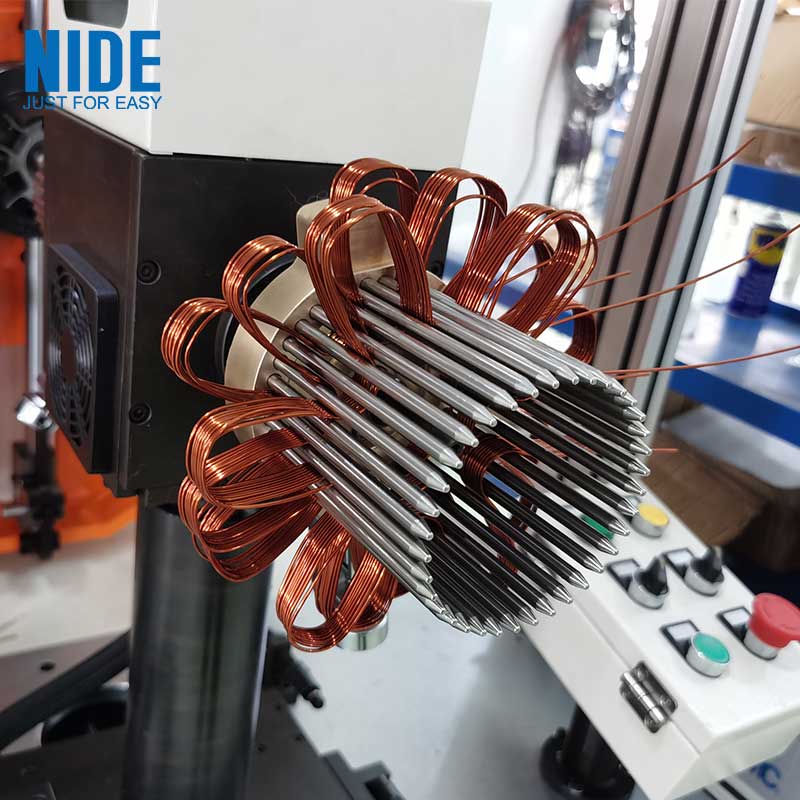

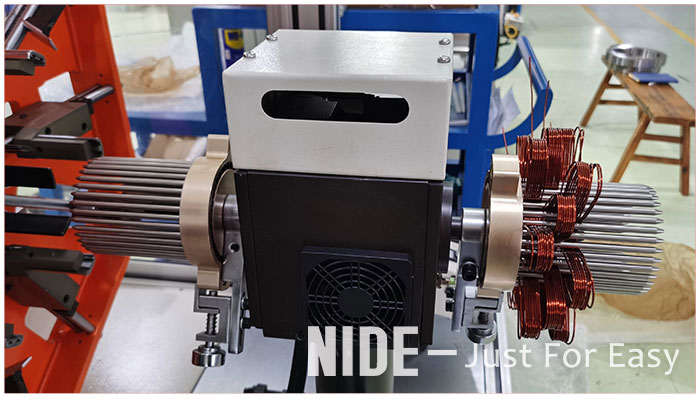

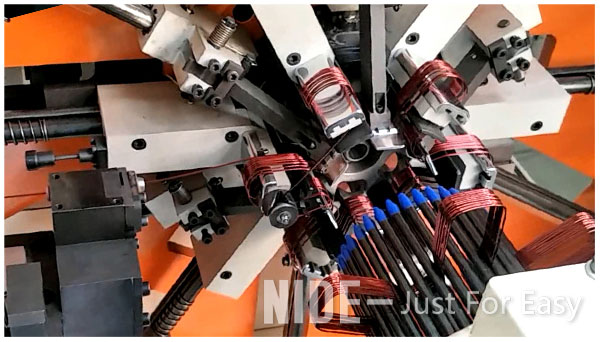

The alternator stator coil winding spindle drive by servo motor,wire feeding,cutting and winding are completed automatically. It could use for one wire or two wire parallel winding,transfer form indexing is automatically, this alternator motor winding machine can be winding two coils.
(3). The alternator stator winding machine technical paramenter
| Product name: | Automatic electric vehicle alternator stator waving winding machine |
| Wire diameter: | 0.5~1.8mm |
| Max stack height: | 55mm |
| Max stator OD: | 160mm |
| Max stator ID: | 80mm |
| Jump file number: | 250RPM |
| winding stations: | 2 |
| Air source: | ≥0.4MPa |
| Power supply: | 380V 50/60HZ 4KW |
| Weight: | about 1200KG, customized |
| Dimension: | (L)1850*(W)2100*(H)2000mm ,customized |
